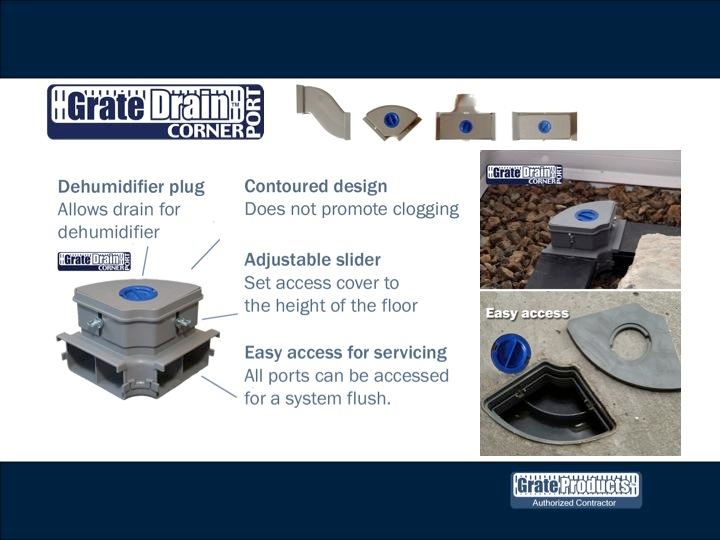

  GrateDrain

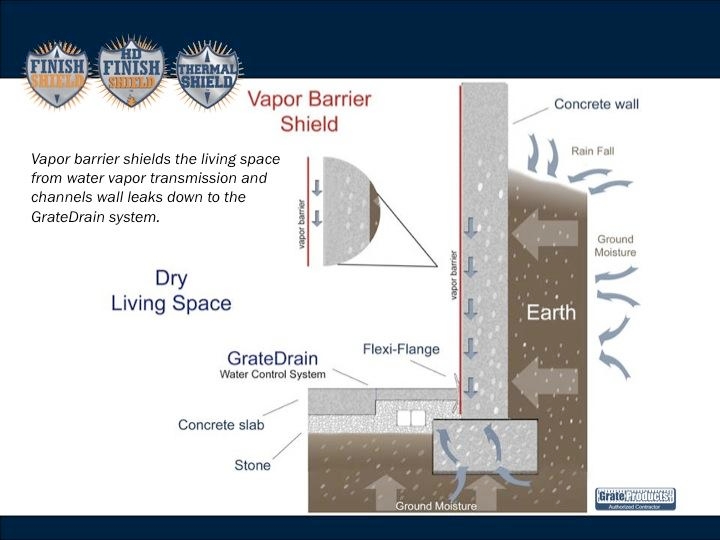

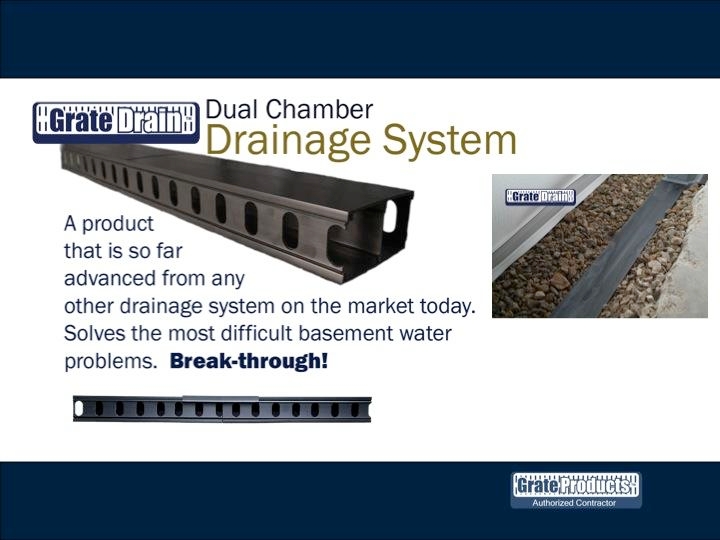

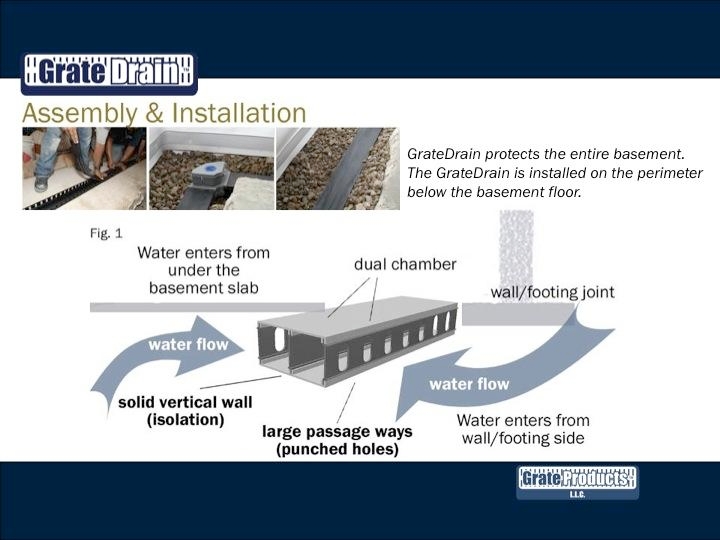

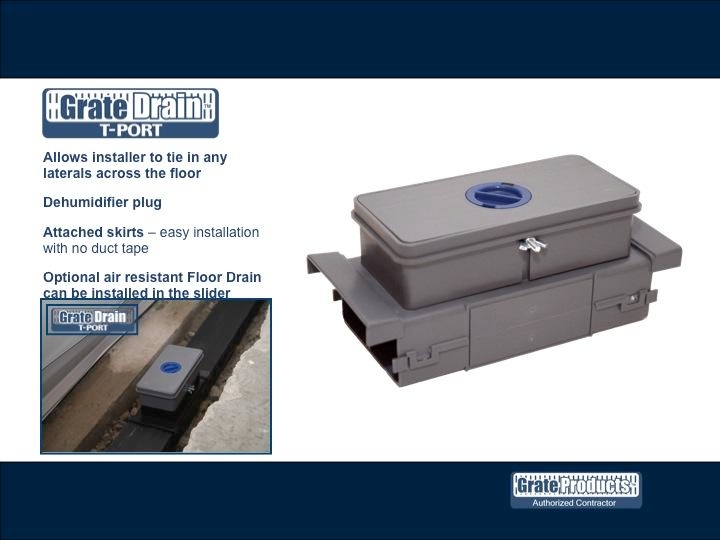

  GrateDrain is a patented basement drainage system designed with adjustable access ports, large engineered punched holes that allow ground water to enter very quickly. GrateDrain has many specially designed fittings. It is a closed basement drainage system that does not allow ground humidity to enter the home from an open channel along the basement wall/floor joint.

•

  GrateSump

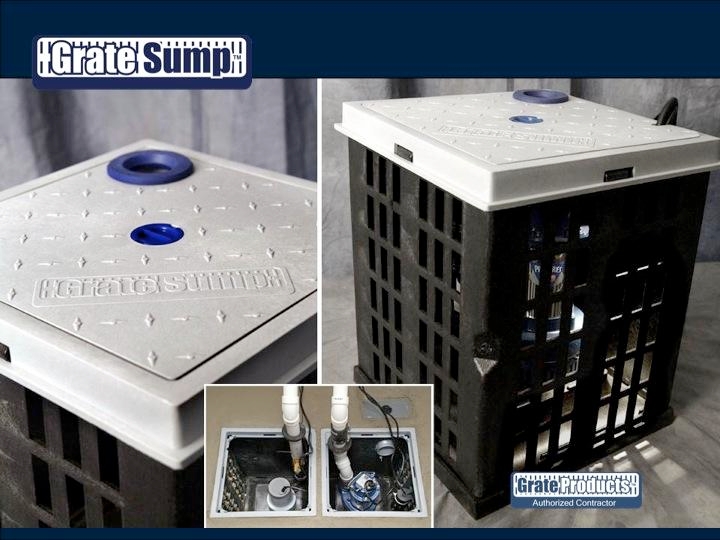

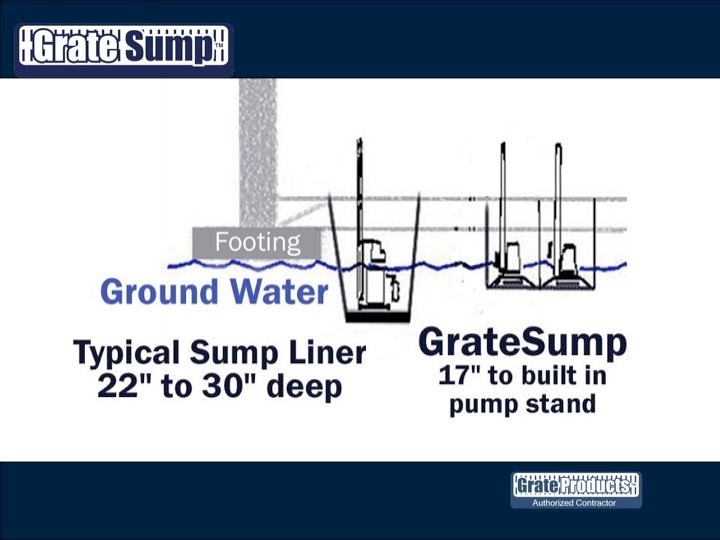

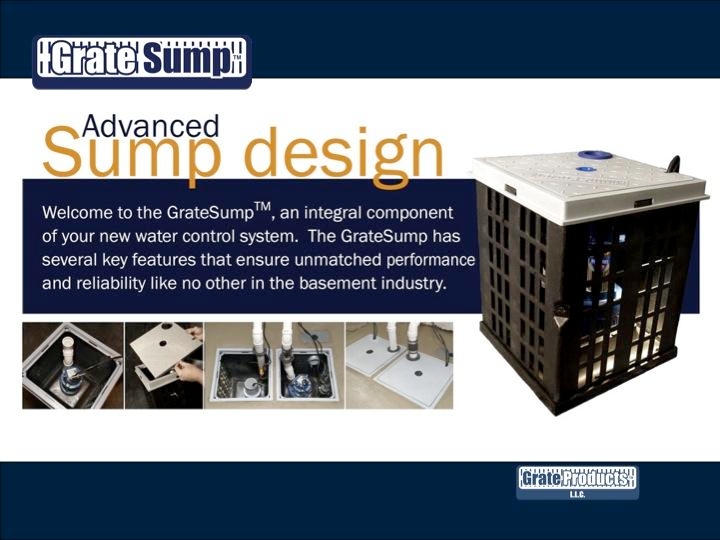

  GrateSump is an engineered sump pump housing that is designed to quickly remove water from under a basement floor without undermining the soil from under the foundation walls. The GrateSump was designed not only for the installer, but especially for the service technician. It has a solid cover that is easy to take off and easy to put on. There is a built in pump stand, large grated holes on two sides and solid walls on the two sides that face the foundation. All GrateSump liners come with a permanent mesh filter which can be cleaned from within the sump housing. GrateSumps can be joined together with a GrateSump Joiner, this allows on GrateSump to be a primary and a second one can be used to house a battery back up pump. GrateSump Features Does not promote undermining of the foundation Traditional sump liners can remove sediment from under the basement footing causing the foundation to weaken. GrateSump resists iron and clogging Large engineered slots on the front two sides of the GrateSump reduces clogging and increases water flow. Built in pump stand keeps debris away from pump and aids in cleaning. Easy on / easy off cover No screws to lose. Dehumidifier drain plug Connect your dehumidifier to the built-in drain plug. Permanent mesh filter can be cleaned from within the sump housing. GrateSump dual combination GrateSumps can be linked together to add an additional pump or battery back up system. Every pump has its own house Eliminate cords etc. getting tangled in pump switches. Virtually air tight cover Impressive steel like gray plastic cover. Reduces ground humidity from entering basement.

•

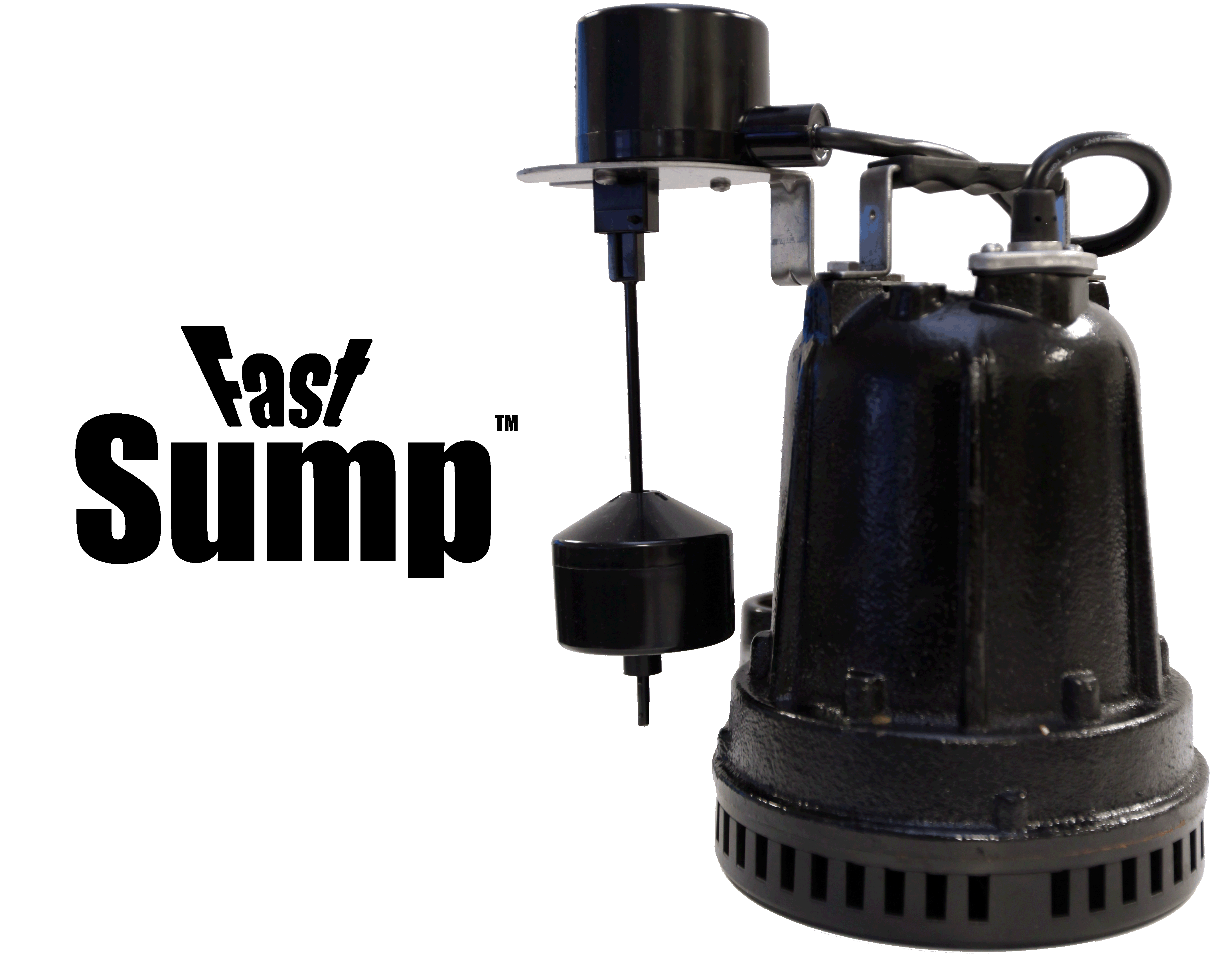

  FastSump Pump

  (2400 GPH at 10 Ft Head)- compared to a 1/3 hp Zoeller M53 which is 2040GPH) 4.0 amp High Efficient Motor With Upper & Lower Ball Bearings / Runs Cooler & Last Longer Vortex Impeller / Helps Prevent Clogging Sealed Entry-Replaceable Power Cord / Easy To Replace In The Field, Prevents Water From Entering The Motor Housing Through A Cut Power Cord (Up To 50’ Available) Piggy-Back Switch Design / Defective Switches Can Be Diagnosed By Phone; Pump Can Be Operated Manually By Overriding The Switch Every Pump Is Tested In Water / Ensures That The Pump Meets Head & Flow Requirements

•

  GrateSump Plus

  GrateSump Plus (Complete Sump Kit with Battery Back Up) Includes:(1) FSS3V-11 1/3hp Sump Pump (3 year warranty), 1 - GrateSump Inverter (FSI900W) with 1- 12 vt Sealed Battery (IBATT), 1- Battery Box (1) FastSump liner with air resistance lid, rubber grommet, dehumidifier plug, slider with wing nut and bolt for attaching a GrateDrain Outlet, GrateSump Service Pack which includes service envelope, owner's manual, cord holder, (2) nail in fasteners, (4) 8" cable ties, 1 1/2" PVC Pipe, screw in check valve, 1 1/2" Flex coupling.

•

  GrateSump Plus 2

  GrateSump Plus 2 Complete Sump Kit with Dual GrateSumps with Battery Back Ups) Includes:(2) FSS3V-11 1/3hp Sump Pump (3 year warranty), 2 - FastSump Inverter (FSI900W) with 2- 12 vt Sealed Battery (IBATT), 2- Battery Box (BB) (2) GrateSump liners (GS) with air resistance lids, rubber grommets, dehumidifier plugs, sliders with wing nuts and bolts for attaching a FastDrain Outlet, 1 GrateSump Joiner, 2- GrateSump Service Pack which includes service envelope, owner's manual, cord holder, (2) nail in fasteners, (4) 8" cable ties, 1 1/2" PVC Pipe, screw in check valve, 1 1/2" Flex coupling.
